TechNexion Camera Modules for AGX Orin JetPack 6.2.x

Instruction

TechNexion Embedded Vision Solutions provide embedded system developers access to high-performance, industrial-grade camera solutions to accelerate their time to market for embedded vision projects.

Supported Camera Modules

Camera Series	Products
GMSL2 Series	VLS-GM2-AR0144 VLS-GM2-AR0145 VLS-GM2-AR0234 VLS-GM2-AR0521 VLS-GM2-AR0522 VLS-GM2-AR0821 VLS-GM2-AR0822 VLS-GM2-AR1335

More Camera Products Details...

Supported NVIDIA Jetson Developer Kit

NVIDIA Jetson AGX Orin

Install TN Camera on Jetson Developer Kit

Adaptor for NVIDIA Jetson AGX Orin Development Kit

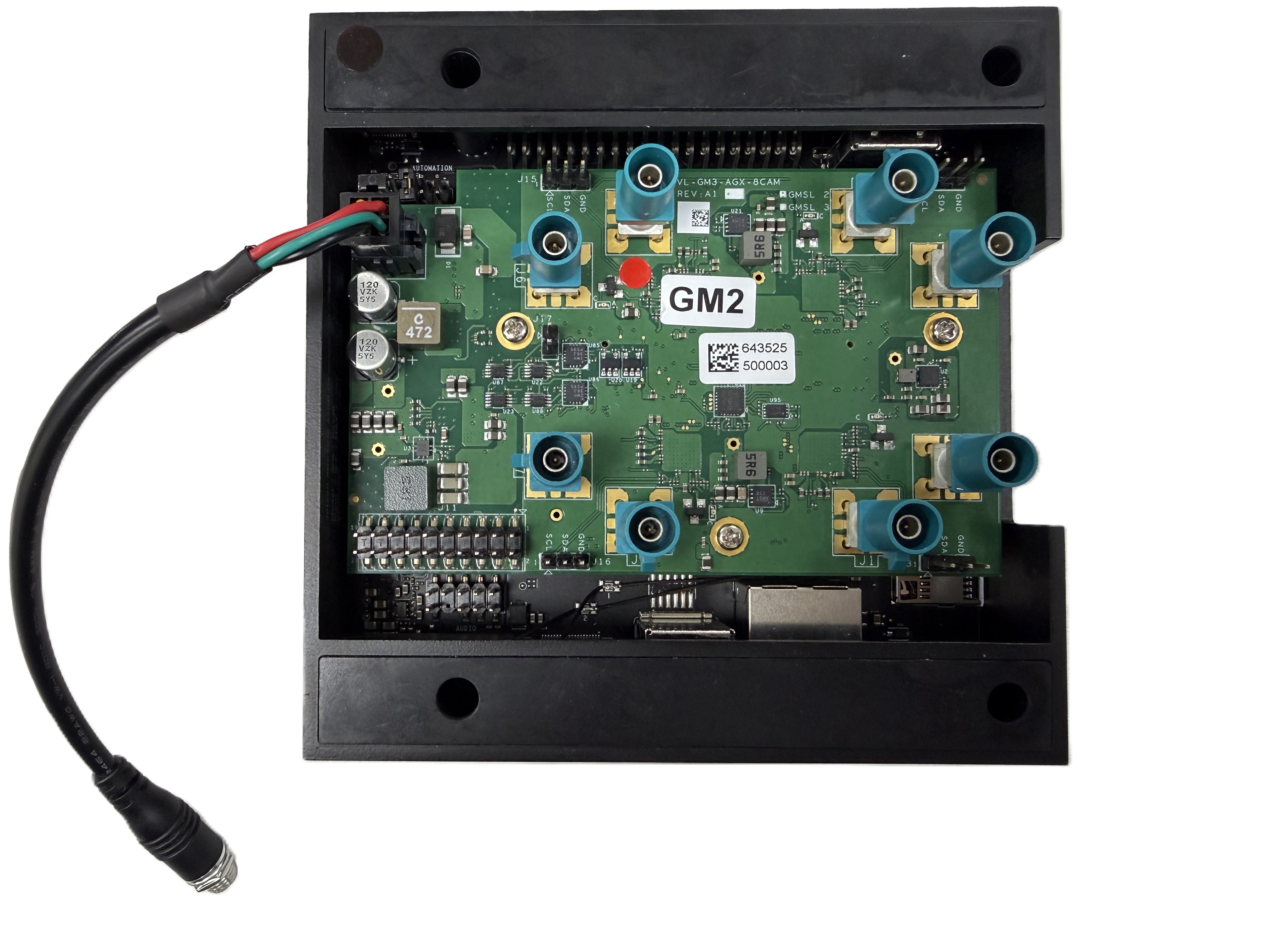

VL-GM2-AGX-8CAM Adaptor for VLS-GM2 Cameras

Connect VL-GM2-AGX-8CAM adaptor to AGX Orin directly.

Method 1 - Using TechNexion pre-built modules

info

We recommend following the Getting Started Guide for Jetson AGX Orin Developer Kit. After that, you can follow the below method to install TechNexion Cameras Driver.

Download pre-built modules.

JetPack 6.2

wget https://download.technexion.com/demo_software/EVK/NVIDIA/OrinNano/pre-built-modules/latest/JP62/tn_camera_modules_jp62.tar.gz

JetPack 6.2.1

wget https://download.technexion.com/demo_software/EVK/NVIDIA/OrinNano/pre-built-modules/latest/JP621/tn_camera_modules_jp621.tar.gz

Uncompress the modules.

tar -xf tn_camera_modules_<jp_ver>.tar.gz

Run installation script.

cd tn_camera_modules_<release_time>/
./tn_install.sh

After you agree to continue the installation, select the pre-installed modules that you want. The default module is TEVS cameras.

$ ./tn_install.sh
****** TechNexion Camera Driver Installation ******
This installation is easy to install TechnNexion Camera Drivers for Nvidia
Jetson Development Kits. Before start to install camera driver,
You should BACKUP your image to avoid any file you lost while installing process.
Do you want to continue?[Y/n]y
Continuing with the installation...
File  does not exist in /boot/dtb/
Setting REF_DTB_FILE to existing file: kernel_tegra234-p3737-0000+p3701-0005-nv.dtb
Install TN-CAM modules: max96724.ko
Install TN-CAM modules: max96716a.ko
Install TN-CAM modules: max96717.ko
Install TN-CAM modules: vls3.ko
Install TN-CAM modules: tevs.ko
Select platform:
        [1]: Jetson Orin Nano
        [2]: Jetson AGX Orin (only support JP6.2.x)
Which platform do you select?[default:1]2
Install TN-CAM DTBO file: tegra234-p3737-camera-vls-gm2-overlay.dtbo
Installed TN-CAM DTB file Done.
Install TN-CAM DTBO file: tegra234-p3737-camera-vls-gm2-fsync-overlay.dtbo
Installed TN-CAM DTB file Done.
Install TN-CAM DTBO file: tegra234-p3737-camera-vls-gm2-tunnel-overlay.dtbo
Installed TN-CAM DTB file Done.
Install TN-CAM DTBO file: tegra234-p3737-camera-vls-gm2-tunnel-fsync-overlay.dtbo
Installed TN-CAM DTB file Done.
Install TN-CAM DTBO file: tegra234-p3737-camera-vls-gm2-fsync-external-overlay.dtbo
Installed TN-CAM DTB file Done.
Installing module: vls-gm2
Add TN-CAM Configuration for modules: vls-gm2
Installing module: vls-gm2-fsync
Add TN-CAM Configuration for modules: vls-gm2-fsync
Installing module: vls-gm2-tunnel
Add TN-CAM Configuration for modules: vls-gm2-tunnel
Installing module: vls-gm2-tunnel-fsync
Add TN-CAM Configuration for modules: vls-gm2-tunnel-fsync
Installing module: vls-gm2-fsync-external
Add TN-CAM Configuration for modules: vls-gm2-fsync-external
Set Default Configuration for modules: vls-gm2
Install TN-CAM service...
Launch TN-CAM Service...
Finish Camera Driver Installation. Return Code:[0]
You should Reboot Device to enable vls-gm2 Cameras.
Do you want to reboot now?[Y/n]Y
Rebooting....

tip

You should reboot the device after installation.

Method 2 - Build drivers from source code

Please follow the guide to build camera driver modules.

Bring up Camera

TechNexion VizionViewer

VizionViewer™

Gstreamer

If you succeed in initialing the camera, you can follow the steps to open the camera.

Check the supported resolutions:

$ gst-device-monitor-1.0 Video/Source
Probing devices...

Device found:

        name  : vi-output, tevs 9-003d
        class : Video/Source
        caps  : video/x-raw, format=UYVY, width=640, height=480, framerate=60/1
                video/x-raw, format=UYVY, width=1280, height=720, framerate=60/1
                video/x-raw, format=UYVY, width=1280, height=800, framerate=60/1
                video/x-raw, format=NV16, width=640, height=480, framerate=60/1
                video/x-raw, format=NV16, width=1280, height=720, framerate=60/1
                video/x-raw, format=NV16, width=1280, height=800, framerate=60/1
                video/x-raw, format=UYVY, width=640, height=480, framerate=60/1
                video/x-raw, format=UYVY, width=1280, height=720, framerate=60/1
                video/x-raw, format=UYVY, width=1280, height=800, framerate=60/1
        properties:
                object.path = v4l2:/dev/video0
                device.api = v4l2
                media.class = Video/Source
                api.v4l2.path = /dev/video0
                api.v4l2.cap.driver = tegra-video
                api.v4l2.cap.card = "vi-output\,\ tevs\ 9-003d"
                api.v4l2.cap.bus_info = platform:tegra-capture-vi:0
                api.v4l2.cap.version = 5.15.148
                api.v4l2.cap.capabilities = 84200001
                api.v4l2.cap.device-caps = 04200001
                device.id = 33
                node.name = v4l2_input.platform-tegra-capture-vi
                node.description = "vi-output\,\ tevs\ 9-003d"
                factory.name = api.v4l2.source
                node.pause-on-idle = false
                factory.id = 10
                client.id = 32
                clock.quantum-limit = 8192
                media.role = Camera
                node.driver = true
                object.id = 34
                object.serial = 34
        gst-launch-1.0 pipewiresrc path=34 ! ...

...

Bring up the camera (/dev/video0) with 1280x720 by Gstreamer pipeline:

DISPLAY=:0 gst-launch-1.0 v4l2src device=/dev/video0 ! \
"video/x-raw, format=UYVY, width=1280, height=720" ! xvimagesink sync=false

Troubleshooting

Cannot Find Cameras

If you cannot bring up the cameras, you can check if the video device does exist.
```
$ ls /dev/video*  # List all video devices
/dev/video0  /dev/video1
```
If you cannot see the devices, you should check if the drivers have been probed.

Occur Error: Could not get EGL display connection

If you occurred the errors nvbufsurftransform: Could not get EGL display connection by rununing the Gstreamer command, you can modify the parameter 'DISPLAY' by the command:

# Check and Set environment parameter for 'DISPLAY'
$ export DISPLAY=$(w| tr -s ' '| cut -d ' ' -f 3 | grep :)
# Run Gstreamer pipeline
$ gst-launch-1.0 v4l2src device=/dev/video0 ! \
"video/x-raw, format=UYVY, width=1280, height=720" ! xvimagesink sync=false
