EDM-IMX95

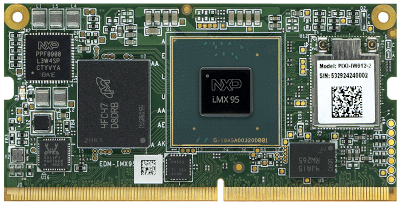

The EDM-IMX95 is a System on Module (SoM) based on the NXP i.MX95 processor family.
EDM-IMX95 is scheduled for mass production in Q1 of 2026. It is currently obtainable through an early access program. For more information, email sales@technexion.com.
Overview
The EDM-IMX95, a System on Module (SOM), features an NXP i.MX95 6-core Cortex-A55™ processor with Cortex™-M7 for realtime operations and Cortex M33™ for system management and safety processing. It includes an NXP eIQ neutron N3-1024S, an Image Signal Processor (ISP), and a 4K video processing unit. It supports MIPI-DSI + dual-channel LVDS display and 32-bit LPDDR5 memory (up to 16GB). TechNexion’s scalable “EDM-G pin-to-pin” family offers interfaces like PCIe, 10Gb Ethernet, 2x1Gb Ethernet, CAN-FD, USB, I2S, UART, SPI, I2C, PWM, GPIO for IIoT edge devices. Pre-certified dual-band Wi-Fi, Bluetooth, and available Linux, Yocto, Android images and source code are available. It is suitable for commercial temperatures (0 to 60°C) and industrial temperatures (-40 to +85C) applications.
Technical Specifications
| Feature | Description |
|---|---|
| CPU | NXP i.MX 95: 6 × Cortex™-A55 @ 2.0GHz + Cortex™-M7 @ 800 MHz + Cortex-M33 @ 333 MHz |
| Memory | up to 16GB LPDDR5 32-bit @ 6400 MT/s |
| GPU | Arm Mali-G310 Graphic Processing Unit (GPU) |
| NPU | NXP eIQ neutron N3-1024S at up to 2 TOPS |
| Video Processing Unit | 4Kp 60 H.265 Video Encode and Decode + JPEG Encode/Decode |
| Camera | MIPI-CSI and ISP (2x 4-lane, 2.5 Gbps/lane) with PHY (one mux'd with DSI) |
| Display | 4-lane MIPI-DSI (muxed with 1 MIPI CSI-2 port) + dual-channel LVDS + MIPI-DSI (2x 4-lane, or 1x 8-lane) |
| Storage | eMMC up to 64GB, SD card (on baseboard) |
| Network | Ethernet: 10/100/1000 Mbps PHY on board + 1x 10GbE if PHY on baseboard |
| Wireless | WiFi: Certified 802.11 a/b/g/n/ac, Bluetooth: 5.0, BLE |
| RTC | on baseboard |
| I2C | 3 |
| SPI | 2 |
| UARTs | Up to 3 |
| USB | 1x USB2.0 OTG + 1x USB 2.0 Host |
| CAN-FD | Up to 5 with 2 via assigned IO |
| Audio | 2 I2S (SAI) |
| Commercial Temperature Range | 0 to 60C |
| Industrial Temperature Range | -40 to 85C |
| Dimensions | 35mm x 69.6mm |
Visit product page on TechNexion website for:
- Reference Manuals
- Schematic and gerbers of our evaluation kits
- Mechanical drawings
Pin-to-Pin Comparison
Interesting to know how various members of the EDM family have pin-to-pin compatiblity? Check out our [TODO EDM comparison page - add article here] for more information.
Getting Started
The EDM-IMX95 is part of the EDM SoM product line. In this documentation, you will find comprehensive information about product features, development kits, and software.
Recommendations for Initial Development
WWhen beginning your work with the EDM-IMX95, it is necessary to select an appropriate development kit for your application. Please check back in the future for more information regarding development kits for EDM-IMX95.
Development Kits
Kit information will be available soon.
Software Development
This product is supported with the following operating systems.
Visit our embedded software page for instructions on developing software for this product.
Support Options
Having trouble? Please check out our support page for available support options.
