TechNexion TEVS Camera for ST STM32N6570-DK

Introduction​

TechNexion Embedded Vision Solutions provide embedded system developers access to high-performance, industrial-grade camera solutions to accelerate their time to market for embedded vision projects.

Support Camera Modules​

Camera SeriesProducts
TEVS
TEVS-AR0144
TEVS-AR0145
TEVS-AR0234
TEVS-AR0521
TEVS-AR0522
TEVS-AR0821
TEVS-AR0822
TEVS-AR1335
Camera Sensor Comparison
More Camera Products Details

Check here ! 🔗 TechNexion Embedded Vision Solutions
Find out the solution which can accelerate your time to market for embedded vision projects.

Supported Development Kit​

Recommended Tools & Software​

Install TN Camera on STM32N6570-DK​

Adaptor for STM32N6570-DK​

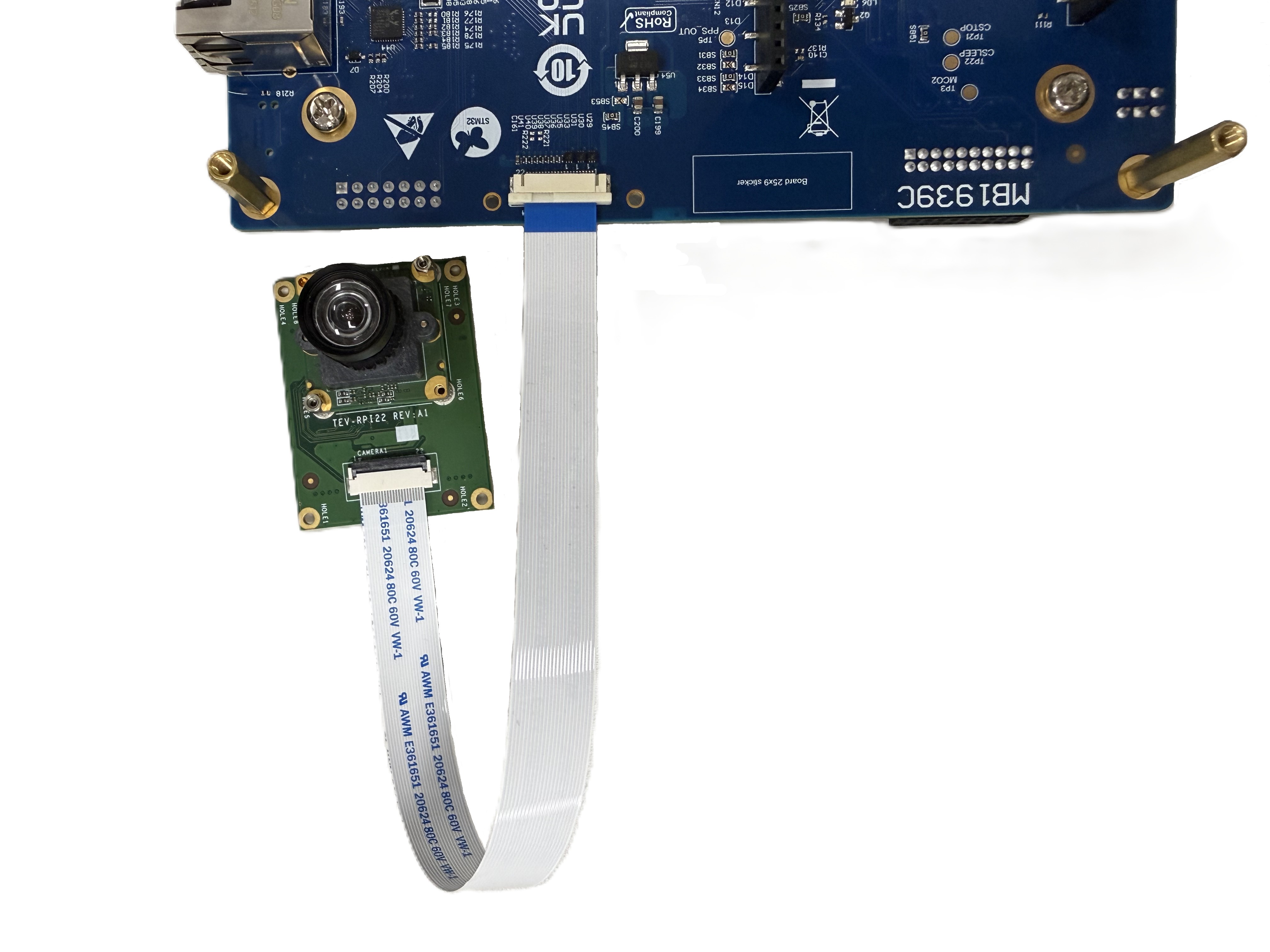

TEVS-RPI22 Adaptor for TEVS camera

Connect TEVS camera and TEVS-RPI22 adaptor to STM32N6570-DK directly.

Method 1 - Run project with STM32CubeIDE​

  1. Download the TechNexion source code from GitHub.

    $ git clone https://github.com/TechNexion-Vision/stm32n6_camera.git

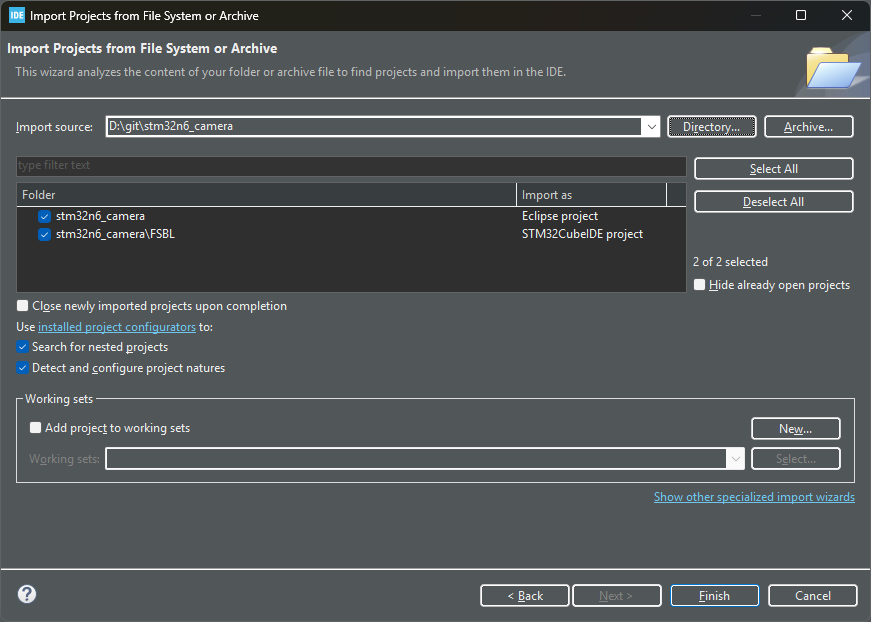

  2. Import the project into STM32CubeIDE.
    Select "File" -> "Import..." -> "Projects from Folder or Archive" -> "Next >" -> "Directory..." (choose your git floder path) -> "Finish".

  3. Generate code based on the project configuration file.
    Open the "STM32N6570-DK-TEVS.ioc" configuration file, and then select "Project" -> "Generate Code" in the toolbar.

  4. Build project.
    Select "Project" -> "Build Project" in the toolbar.

  5. Connect STM32N6570-DK - "CN6" with PC via USB-Type C.

    warning

    A USB Type-C to Type-C cable must be used to ensure sufficient power supply.

  6. Run project.

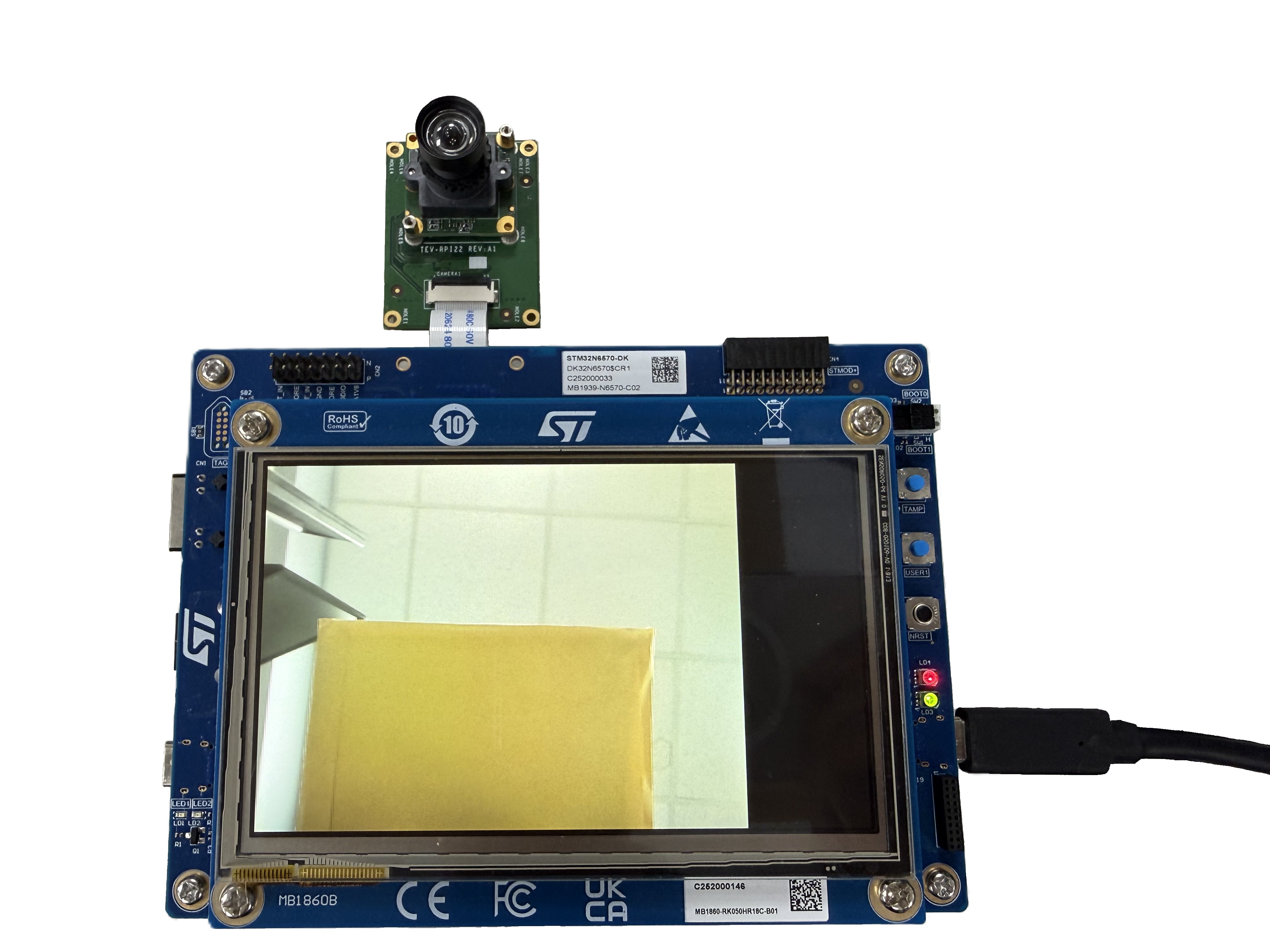

    Select "Run" -> "Run" in the toolbar. You can see the camera's stream in real time on the LCD screen, and some informations on the terminal.


    ========== TechNexion TEVS ==========

    [   INFO ] TEVS_Check_BootState(): bootup state: 0x0008
    [   INFO ] TEVS_Init(): set TEVS default data frequency
    [   INFO ] TEVS_Check_BootState(): bootup state: 0x0008
    [   INFO ] TEVS_Init(): set TEVS preview format UYVY
    [   INFO ] TEVS_Init(): set TEVS 2 lanes
    [   INFO ] TEVS_Set_Stream(): sensor standby
    [   INFO ] TEVS_Init(): TEVS version: 25.03.00.02
    [   INFO ] TEVS_Set_Stream(): sensor wakeup
    [   INFO ] TEVS_Set_Format(): TEVS resolution: 640x480@60

    tip

    The terminal must be configured to implicitly include a CR in each LF.
